Mount Evans Site Survey Status -- 1991-present


Meyer-Womble Observatory, University of Denver Observatories

4/22/99, R.E.Stencel (rstencel@du.edu)

We continue to assemble evidence that Mt.Evans may provide one of the best INFRARED and SUB-MILLIMETER SITES available in the CONTINENTAL U.S., due to its extreme high altitude (4,303 meters), accessibility (paved road to summit), infrastructure (new 2,100 sq ft observatory building, nearby base camp at 10,600 ft) and proximity to transportation, supplies and universities in Denver. A permit from the Forest Service has *already been obtained* for the addition of a 4 meter class telescope. An FCC license for broadband 6.5 GHz line of sight communication to Denver campus, 50 km distant, is also in hand.


NOTE: PAGE STILL BEING AUGMENTED... CONSTRUCTIVE COMMENTS WELCOMED

Copy of Cloud cover and water vapor report by Andre Erasmus available on request to rstencel@du.edu

Note: Figures referenced hereafter are available on request.
Update: 1991-1996 remote weather station summary.


We summarize here relevant observations as to the conditions atop Mount Evans, as part of the continuing study to determine its quality as an astronomical site. This report is divided into four sections:

SECTION 1 includes the basic METEOROLOGICAL conditions such as temperature, wind, humidity, and precipitation, based on nearly 5 years of in-situ monitoring with a remotely accessible weather station package.

SECTION 2 compiles a list of observations in an effort to determine the CLOUD COVER STATISTICS for the mountain, using a variety of means.

SECTION 3 discusses "SEEING" measurements that have been conducted at the summit, using double stars, acoustic soundings and differential image motion monitoring.

SECTION 4 addresses SKY BRIGHTNESS issues for the site.


Mt.Evans offers an attractive continental INFRARED site with conditions comparable, at times, to the best astronomical IR sites. The combination of extreme high altitude, existing special use permits, paved state highway to the 14,000 ft summit, nearby base camp at 10,600 ft, ready access to an urban area with supplies and transportation, make Mt.Evans an appropriate site for a major astronomical facility. If further details are of interest, or if you want to participate in further site survey studies, please contact the Department of Physics and Astronomy, University of Denver, or rstencel@du.edu.
Due to LIMITED RESOURCES, the sampling statistics are not as complete as for other developed sites, but these still can be regarded as representative of conditions at Mt.Evans. It should be noted that many of the issues discussed in the following sections are being more carefully addressed with the use of the Meyer Binocular Telescope, installation of which occurred in late summer 1997. CDROMs of yearly observations are available on request to rstencel at du.edu .


SECTION 1: METEOROLOGICAL CONDITIONS

The University of Denver has continuously operated a modest weather station atop Mount Evans since January of 1991. This station has been outfitted with sensors to measure temperature, barometric pressure, relative humidity, and wind speed and direction, plus battery voltage maintained by solar panels. The station's data logger as been programmed to pole the sensors every minute and report one hour averages as well as minimum/maximum values and standard deviations for that hour. The bulk of the data presented in this section has been acquired from this station. Partial gaps in the data sets are due to occassional sensor malfunctions during these periods. A pyranometer was added to the sensor package in June of 1996. Although battery voltages, despite a voltage limiter in the circuit, can indicate the fraction of sunny hours, the pyranometer will provide more direct statistics.

A: TEMPERATURE

Temperature conditions are best illustrated in Figure 1A, where the daily average, minimum, and maximum temperatures as a function of the day of the year are plotted for each of the years between January 1991 and the present. The temperature profile is remarkably constant from year to year with diurnal variations being on the order of 10 degrees Fahrenheit. Also of special note is the infrequency of days below zero degrees Fahrenheit. These results are significant because: (a) the hourly temperature gradient is small, which minimizes thermal distortions, and (b) operationally, one does not require engineering for supercold arctic conditions (i.e. -60F).

B. WIND SPEED AND DIRECTION

Wind data is best represented by the following the graphs shown in Figures 1B and 2B. Figure 1B shows a number distribution plot of average and maximum hourly wind speeds for the four seasonal periods December- February, March-May, June-August, and September-November. Median and Mean wind speeds are also quoted for these seasons, averaging 25 to 30 knots, with sigma about 10 knots. Maximum winds measured to date have not exceeded 90 knots, although construction should plan for higher speeds.

Figure 2B plots the hourly averaged wind direction versus its corresponding speed. These plots clearly demonstrate that when the wind speeds are greater that 15 knots, the winds are tightly constrained to a direction out or the west-south-west (Az = 255 degrees). Below this value, the direction is more random but still preferentially out of this west south-west direction. This result is important for several reasons: (a) the average wind speed is comfortably below dome closure requirements of 40 knots; (b) the wind direction is the most favorable for inducing laminar flow over the observatory parcel, i.e. from the steep western side of the ridge, cresting above the observatory and descending to the east. This latter behavior accounts for the seeing stability noted toward the west side of the sky (see image motion monitoring, below).

C. WATER VAPOR COLUMN

Relative humidity, barometric pressure, and temperature data can be used to calculate the partial pressure of water vapor at the site (see Allen, Astrophysical Quantities, 3rd ed., p.120). For the latitude of Mount Evans, the partial pressure of water in millibars, nearly equates to the vertical column of water in precipitable millimeters. A water column less than 2 millimeters (<2mb) corresponds to excellent infrared transparency. Figure 1C shows the daily average a well as the minimum and maximum for the partial pressure of water as a function of day for a given year. Data gaps are primarily due to failures in the relative humidity sensor during those periods. The data shows excellent conditions for infrared observations during the fall and winter months. If the ground humidity is elevated due to surface evaporation, these results represent upper limits to the dryness of the Mt. Evans site.

===========================================================================
TABLE 1.c COMPUTED MEAN WATER COLUMNS BY MONTH FOR 1995
---------------------------------------------------------------------------
Month	 Computed millibars H20     Equivalent mm prec.H20
JANUARY	  1.5				1.1
FEBRUARY  1.5 				1.1
MARCH     2.0 				1.5
APRIL     2.0 				1.5
MAY       2.5 				1.9
JUNE      3.5 				2.6
JULY      4.3 				3.3
AUGUST    5.5 (monsoon)			4.1
SEPTEMBER 3.0 				2.3
OCTOBER   2.3 				1.7
NOVEMBER  1.5 				1.1
DECEMBER  1.5 				1.1
---------------------------------------------------------------------------
Note: 1 atm = 760 mm = 1013 mb pressure at sea level, 0.75 mm/mb ratio.
---------------------------------------------------------------------------
Recently, JHK region atmospheric daytime spectra were obtained with the DU ASTI spectrometer -- see Figure 1c.

A more direct measurement of the water column was done using a near infrared (1-2 micron) prism spectrometer featuring a single element pyroelectric detector. The instrument was designed to measure the 1.1 and 1.4 micron absorption features of water using the sun as a source of background continuum. Using the atmospheric transmission code RADCO, we were able to deduce the water column from the measured equivalent widths of the H2O absorption features. The results of the measurements are listed in Table 1C. Results are consistent with values derived from the temperature, barometric pressure, and relative humidity data for the same time of day and year. Unfortunately, a direct comparison was not possible due to a later discovery that the relative humidity sensor was not operating properly during this time interval. Individual p.w.v. column readings have been as low as a few hundred microns.

A one hundred page report "Water Vapor as a Factor in the Selection of Solar Observation Sites" by N.Medrud, NCAR/High Altitude Observatory, March 1970 is available from R.Stencel/DU on request. It includes Rocky Mountain sites.

D. SNOWFALL

Daily records of snowfall have not been measured directly at the summit, but such data has been acquired at our Echo Lake Lab, located approximately 15 miles to the north at an elevation of 10,600 feet, during the past several decades. This location should represent an adequate proxy to the summit for measuring snowfall. In Figure 1D we present the monthly snowfall amounts for the past six years running for the Echo Lake locale. Note that December and January are very dry months as also indicated from water vapor data. November and March are the snowiest months with year to year variability being quite large. This is consistent with experience of Colorado skiers, that there are fresh autumnal and spring snows, separated by a sometimes long, mid-winter dry spell.


SECTION 2: CLOUD COVER STATISTICS

Cloud cover is certainly a very important parameter in determining the quality of any astronomical site. This information, however, is somewhat difficult to attain as one is generally interested in night time conditions wherein cloud cover data is not readily available. For the Mount Evans site, we believe that conditions at sunrise can serve as a reliable proxy to conditions of the previous evening, at least for the several hours prior to sunrise. In addition, morning daylight hours often will be prime time for infrared observations. From the observations to date, we conclude that conditions atop Mount Evans are Suitable For Astronomy (SFA) 60+% of the time with roughly one half of those nights (33% of the time) being of photometric quality. This is based on analysis of satellite data, weather bureau data, line of sight observations and climatology studies.

A: GOES Satellite Data

Utilizing GOES satellite data from 1988-1990, we present cloud cover statistics for various observatory sites (pixel size 2.5 x 2.5 km) across the western U.S. (D.Reinke, C.Combs, STC-METSAT, private comm.). Figure 1A show the percent time cloudy at 9 a.m. for the summer and fall months available. Early MORNING conditions show Mt. Evans to be quite competitive with the established observatory sites shown, with approximately 75% clear time. We were not able to use winter and spring values, as the analysis technique used for this data interprets varying ground-snow conditions as cloudy days.

B: Weather Bureau, and DU Line of Sight Observations

The US National Weather Service maintains cloud cover data records for their Denver airport site covering daily observations in tenths of daytime sky cover over many decades. Examining records fo the past several years reveals a steady one-third split in morning observations between clear, partly cloudy and overcast. We note that Denver airport readings do not take into account localized weather on the summit (e.g. cap clouds that would affect observing; upslope that would not).

Since January of 1994, line-of-sight observations from the University of Denver campus to Mount Evans have been continuously recorded mornings and evenings by Professor Stencel. Observations recorded during morning hours are grouped into four basic categories:

	1) clear, potentially photometric skies;
	2) partly cloudy but SFA (suitable for astronomy, spectroscopic);
	3) mostly cloudy and not SFA;
	4) upslope conditions.

During upslope conditions it not possible to ascertain conditions at the summit. Therefore in principle, mornings placed in this category, may possibly add to those in categories 1 or 2. In Figure 2B we present a month to month summary for the percentage of time that conditions atop Mt. Evans are photometric (1), SFA (1 plus 2), and undetermined (4). The basic result is that 2/3 of the days are SFA, and 1/2 of those appeared photometric. Experience with observing during summer 1998 showed that 24 of 42 nights were useable (57%) including monsoon periods of mid-July to mid-Aug. Excluding those weeks increased the percentages toward 3 out of 4.

===========================================================================
TABLE 2.b FRACTION (%) OF OVERNIGHTS AT LEAST PHOTOMETRIC & SPECTROSCOPIC
---------------------------------------------------------------------------
     Quarter:	WINTER		SPRING		SUMMER		FALL
YEAR		am  pm  nt	am  pm  nt	am  pm  nt	am  pm  nt
1994			62		62		62	74  51  50
1995		71  62  62	56  52  52	75  65  65	70  64  58
1996		63  60  56	65  59  56	76  67  64	48* 55* 48*
1997		50* 53  50	57  45  45	62* 53* 53	52* 58  52
1998		--  --  --	--  --  --		68**		65**
1999			52**
---------------------------------------------------------------------------
Aves:		61  58  56	59  52  54	71  62  62	61  57  55
Range		10   4	 6	 6   7	 8	 9   9   6	13   7  10
---------------------------------------------------------------------------
Notes: WINTER=JanFebMar  SPRING=AprMayJun  SUMMER=JulAugSep  FALL=OctNovDec
am = morning line of sight (with hours before sunrise prob clear).
pm = evening suitable for astron (workable clear evening).
nt = evening and following morning BOTH indicating good astron weather.
*ElNino weather pattern influence, arrived fall'96.  Similar comments are
reported for the VLT/Paranal, Chile site by Giacconi et al. 1999 A&A 343:L3.
** Readings after 1997 are derived from hourly photovoltaic data records.
Details of the daily records that figure into this summary are available on
request.

C: Thesis study on Cloud Climatology = 65% clear.

In this section we relate information reported in a 1981 Master's thesis by Roger Lee Sorensen (Colorado Sate University, Fort Collins, Colorado) entitled "Cloud and Insolation Climatology for Selected Colorado Stations". Of most interest to conditions atop Mt. Evans was Sorensen's study of cloud cover amounts for two observing stations, one in Denver and the other in Colorado Springs. Sorensen computed monthly cloud cover averages for a given hour of the day covering a 10 year time span (1952- 1961). The data is presented in Figure 1C. Cloud amounts for the morning hours are consistent with observations presented in parts A and B of this section. This data is somewhat difficult to gauge in that one cannot ascertain the percentage of totally clear days from this study. For example, the data shows that in the early morning hours of July, that the average cloud cover is roughly 35%. On one hand, this could mean that 35% of the days were totally cloudy and the others totally clear. On the other hand, this could mean that each and every day was 35% cloudy. One must also be cautious in using weather data from Denver as a proxy to conditions atop Mt. Evans. However, it does appear representative of our basic claim that 2/3 of the time is at least suitable for astronomy.

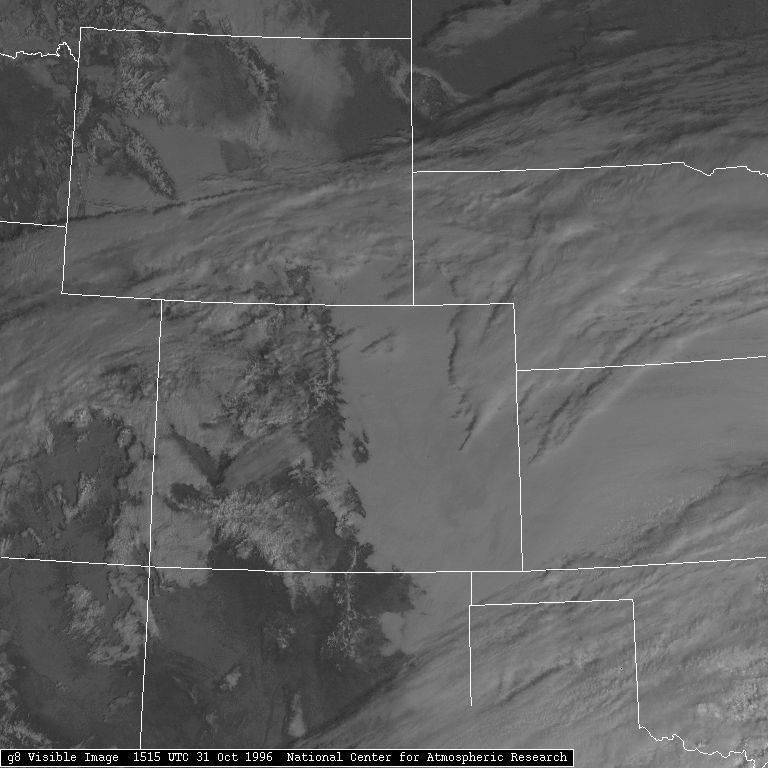

As this satellite image reveals, we occasionally see an "upslope" condition, where a southern low will force moisture up against the foothills, but the higher mountains remain in the clear.


SECTION 3: SEEING STATISTICS = subarcsecond, uncorrected.

Several measurements of the seeing quality atop Mt. Evans have been completed with very promising results. Unfortunately, limited resources have not permitted us to obtain measurements with extensive temporal coverage, due to lack of commercial power at the summit for running seeing monitors unattended. We plan, however, to augment measurements with use of the Meyer Binocular Telescope beginning in the Fall of 1996. This telescope should provide improved definition of the true seeing statistics for the Mt. Evans site. In the following paragraphs we present up to date seeing measurements conducted on Mt. Evans. A CDROM of 1998 data obtained with an Apogee AP7 camera is available on request.

A: Acoustic Soundings

As reported by Stencel et al. (1995 BAAS 26:1321), vertical acoustic sounding measurements were made at the Mt.Evans site during September 1994. Primary conclusions include that (a) refractive and turbulent parameters are comparable to those reported at Mauna Kea by Forbes and others; (b) the measured values imply the atmospheric contribution to the seeing disk due to turblence in the 100 or so meters above the site is no more than 0.1 arcsec; (c) the deduced Fried parameter based on these measurements can be as large as one or more meters. C(n)2 values were found to be comparable to Mauna Kea reported testing, circa 1E-17 m(-2/3). See the full report (to be) appended below.

B: Double Star Images

CCD images were acquired at the summit for the double stars listed in Table 1B. Double stars were used to accurately determine the plate scale of the images. Seeing was ascertained by measuring the full width half maximum of the individual stars. Visual inspection of the images at the telescope suggest the camera did not ideally record the true seeing quality, due to residual aberrations in the 10 and 24 inch telescopes used. None of this data has been deconvolved with the telescope diffraction limits (0.25 and 0.15 arcsec), nor enhanced by any active optics. Despite these problems with CCD frames, it seems reasonable to conclude based on these measurements that at least "arcsecond" quality seeing (0.68 arcsec formally) is routine on Mt. Evans. In addition, the telescopes were housed in a ground level dome with no airflow or thermal compensation for degrading effects from the dome. The Meyer Binocular Telescope should be capable of doing superior measurements of this kind, because airflow and thermal management has been included in its design (plus provision for adaptive optics).

C: H-DIMM Survey

Hartmann mask differential image motion montoring offers the potential to directly observe the seeing cell sizes and their fluctuations (cf. Bally et al. 1995). We conducted a series of these measurements during summer 1995 and present the results here. Fried parameters were found to occur between 5 and 24 cm, and these appear to correlate with azimuth of the star observed, being larger toward the west (windward) side of the sky. Analysis is ongoing, and preliminary results show a range of r(o) values from 5-10 cm on the leeward side of the observing site, to 10-35 cm on the windward (upwind) side, as might be expected for air flowing over the ridge. These values include unmitigated dome seeing effects.

D: Topography of Site

Mt. Evans experiences excellent seeing due to its isolated location and elevation above surroundings. The site is situated some 3,000 feet above tree line and the routine west-southwest winds come from a direction that is unobstructed for several miles. The only local obstruction to the telescope site is the true summit situated to the north. Figure 1D shows several topographical surveys of the mountaintop. The prevailing wind direction is also noted. Note the steep contours along the southwestern slope, a feature known to conicide with sites of excellent seeing such as the MMT on Mt Hopkins, Arizona.


SECTION 4: SKY BRIGHTNESS AND EXTINCTION

Preliminary measurements of sky brightness has been conducted during September 1994, resulting in an estimated 21.5 mag/sq.arcsec, V band, zenith. This compares favorably with estimates by Garstang (1995) of sky brightness at Mt.Evans. Natural background of 22 mag/sq.arcsec is almost achieved, and factors involving solar activity and regional forest fire smoke could be factors in the results to date. A new series of observations is planned with the Meyer Binocular Telescope this autumn. The city lights of Denver fortunately do not affect more than about 5 to 10 degrees of the eastern sky due to relatively low altitude scattering and a semi-stable inversion layer over the city.

UBVRIJHKLMNQ extinction studies are planned for 1999, once the new scope is on-line.

An all-sky visible-light image, 60 minutes on high speed film. In the original, the Milky Way is clearly seen overhead and to the west, while Denver city sky lights affect only the eastern 20% of the sky to varying levels. The darkest skies and best seeing are overhead and toward the west. 9/95.


SUMMARY:
Mt.Evans offers an attractive continental INFRARED site with conditions comparable, at times, to the best astronomical IR sites. The combination of extreme high altitude, existing special use permits, nearby base camp, acess to supplies and transportation, make Mt.Evans an appropriate site for a major astronomical facility. If further details are of interest, or if you want to participate in further site survey studies, please contact the Department of Physics and Astronomy, University of Denver, or rstencel@du.edu.
